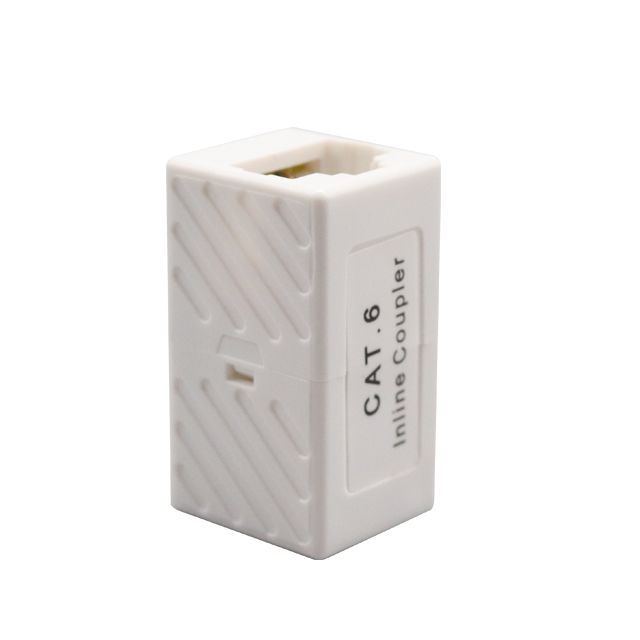

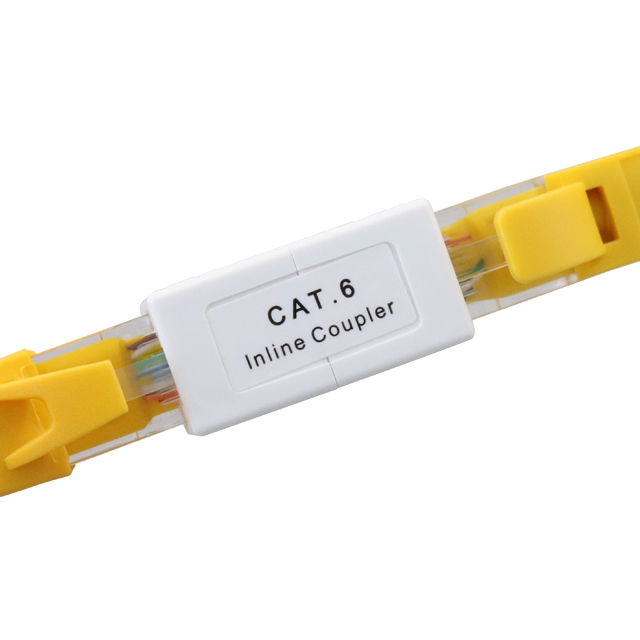

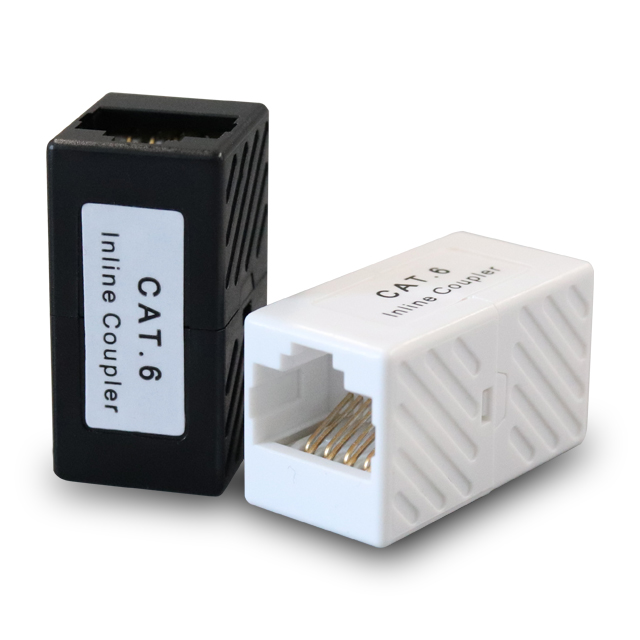

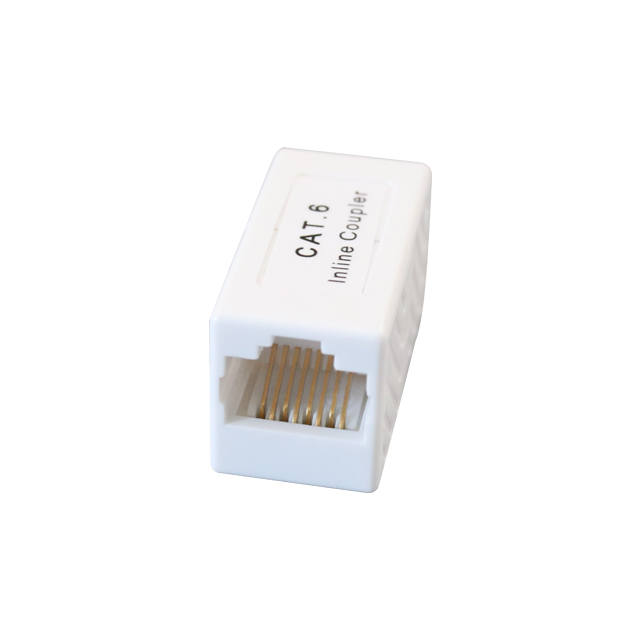

CAT6 Unshielded 180 Degree RJ45 Female Inline Coupler

PREV: CAT6 Unshielded 180 Degree Keystone Jack Inline Coupler NEXT: CAT6 Unshielded 180 Degree Toolless Keystone Jack

Specification
Ordering Information
Packing Information

DESIGN & MATERIALS

ANSI/TIA Category	CAT6/CAT5e
Cable Type	Unshielded
Conductor Type	Solid/Stranded
Housing Material	Polycarbonate(PC)
Contact Base Material	Copper
Contact Plating Material	Gold-plated
IDC Termination	Phosphor Bronze & Tinned
Thickness of Pin	3μ/6μ/15μ/30μ/50μ
Flammability Rating	UL94 V-0/ UL94 V-2
ConnectorType	RJ45 Female-RJ45 Female
Wiring scheme	T568A/T568B
Angle	180 Degree
Wire Gauge Supported	22-26AWG
Working Life Time	RJ45≥750times; IDC≥200 times
Dimensions	14.5216.2128.2 mm
Transmission Standards	ANSI/TIA-568.2-D/ISO/IEC 11801 Class E
Operating Temperature	10℃ to +60℃

ELECTRICAL & MECHANICAL DATA

Current Rating	1.5 amp max
Voltage Rating	230V rms Max
Insulation Resistance	500 MΩ min 100 vdc
IDC Contact Resistance	<1 mΩ max
Dielectric Withstanding Voltage	1000 V dc or ac, 60 Hz for 1 min (Contact-Contact)
Contact Resistance, maximum	100mΩ
Contact Resistance Variation, maximum	20mΩ
Retention Strength	7.7kgs between Jack and Plug

Part Number Description

M-45-6ZT03 Category 6 UTP RJ45 Female Inline Coupler 180 Degree
Part Number Packing Qty. Packing
Mode N.W
(kg) G.W
(kg) Dimension
(mm)

M-45-6ZT03 1500PCS Carton Box 9 10 530*310*520
